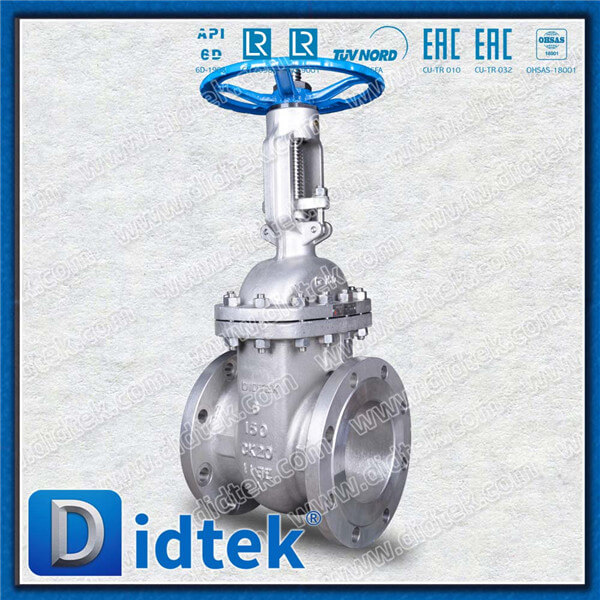

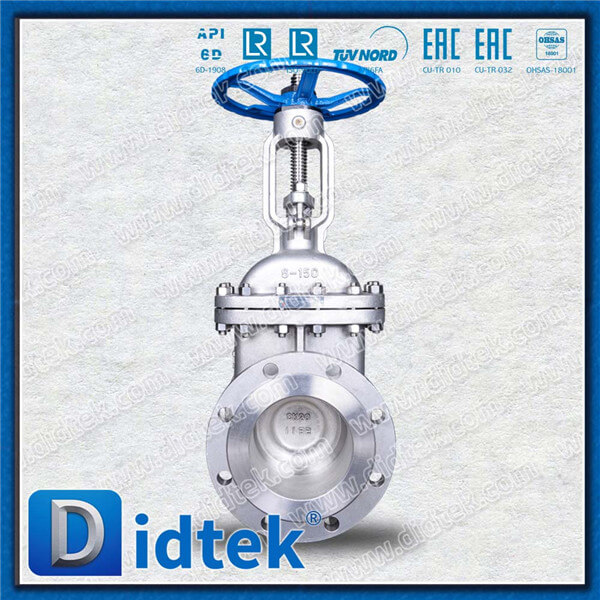

Didtek CK20 Alloy Steel RF Gate Valve

- Outside Screw and Yoke
- Bolted Bonnet and Pressure Seal
- Flexible and solid wedge, fully guided
- Welding seat rings or Renewable seat rings
- Rising stem and non-rising stem
- Available with gear operator
- Flange Ends & Buttwelding Ends
- Low torque design, smooth surface stem
Availability:
Quantity:
  • DIDTEK
  • Gate
  • Didtek provide cast steel, stainless steel, special alloy, CI, DI etc
  • Didtek Produce Gate Valve
  • 100% quantity tested before delivery
  • 18 months after shipments and 12 months after installed

闸阀1

Brand DIDTEK
Valve Structure Wedge Gate Valve
Valve Delivery 15 - 30 days
Valve Sample Sample Available by Didtek Valve
Valve Color Customer request
Valve Packing Plywood Case for Gate Valve
MOQ 1 Set
Valve Certificate API6D/CE/ISO9001/ISO14001
Place of Origin Zhejiang, China (Mainland)
Delivery Detail: Shipped in 15-30 days after payment
Port Shanghai Or Ningbo
Payment Terms L/C,D/A,D/P,T/T, Western Union

Product Details

Applicable Standards:

Gate Valve, API600

Steel Valves, ASME B16.34
Face to face ASME B16.10
End Flanges ASME B16.5/ASME B16.47
Butt Welding ends ASME B16.25
Inspection and test API 598

Operated:  Hand wheel
Material: CK20
Size Range: 2"~36"
Pressure Rating: ASME CL, 150, 300, 600, 900, 1500, 2500
Temperature Range: -196℃~650℃

DIDTEKCSGV

Design Description:

- Outside Screw and Yoke

- Bolted Bonnet and Pressure Seal

- Flexible and solid wedge, fully guide

- Welding seat rings or Renewable seat rings

- Rising stem and non-rising stem

- Available with gear operator

- Flange Ends & Buttwelding Ends

- Low torque design, smooth surface stem

未标题-1

Gate Valve -API600 -Materials:

Parts Name

Part Name

Carbon Steel to ASTM

Alloy Steel to ASTM

Stainless Steel to ASTM

1

Body

A216WCB

A352 LCB

A217 WC1

A217 WC6

A217 WC9

A217C5

A351 CF8

A351 CF8M

A351 CF3

A351 CF3M

2

Seat

A105+13Cr

A105+304

F11/F22+STL

304

316

304L

316L

3

Nuts

A194 2H

A194 4

A194 4

A194 4

A194 4

A194 4

A194 8

A194 8M

A194 8

A194 8M

4

Bolts

A193 B7

A320 L7

A193B16

A193B16

A193B16

A193B16

A193 B8

A193 B8M

A193 B8

A193 B8M

5

Disc

A216 WCB+13Cr

A352 LCB+304

A217 WC1+STL

A217 WC6+STL

A217 WC9+STL

A217 C5+STL

A351 CF8

A351 CF8M

A351 CF3

A351 CF3M

Gate Valve -API600 -Table Of Available Dimensions:

DIDTEKCSGV Table Of Available Dimensions 1

DIDTEKCSGV Table Of Available Dimensions 2

Application & Function:

Didtek Cast steel Gate valves are primarily used for stop valves fully opened or fully closed. They are not normally considered for throttling purposes, but more for slurries, viscous fluids, etc. Gate valves are characterized by a traveling wedge, which is moved with the operation of the stem nut. The wedge travels perpendicular to the direction of the flow. Gate valves usually have a minimum pressure drop when fully open, provide tight shut-off when fully closed, and remain relatively free of contamination buildup.

Accessories:

Accessories such as gear operators, actuators, bypasses, locking devices, chain wheels, extended stems and bonnets for cryogenic service and many others are available to meet the customers’requirements.

Packaging and Shipping

闸阀2

闸阀详情页-3 (1) (1)
