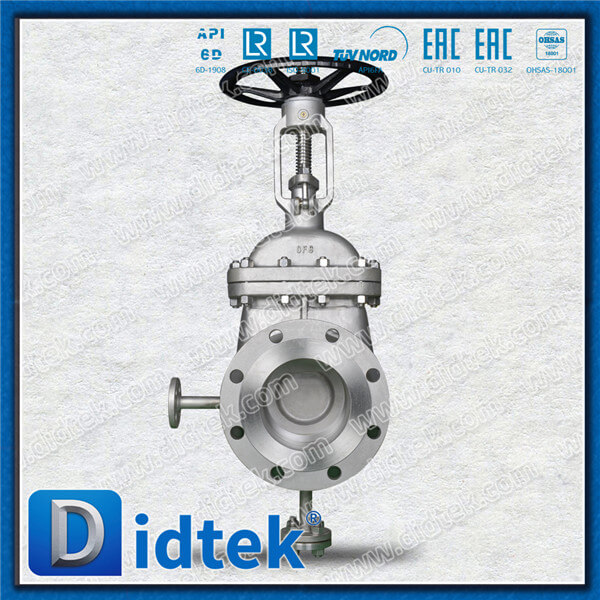

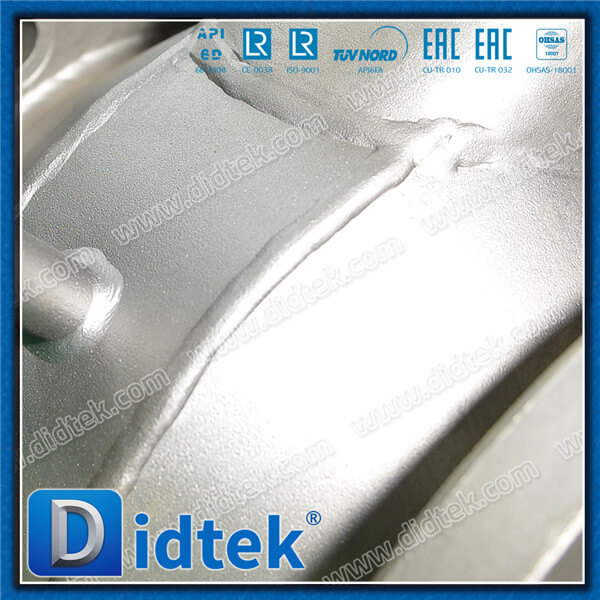

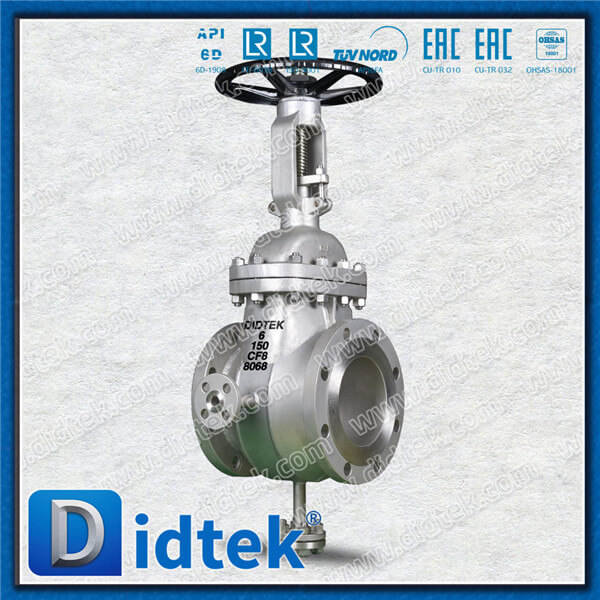

Didtek 6'' CF8 Heat Jacket Gate Valve With Blow Down And Drain

Share to:

Didtek 6'' CF8 Heat Jacket Gate Valve With Blow Down And Drain

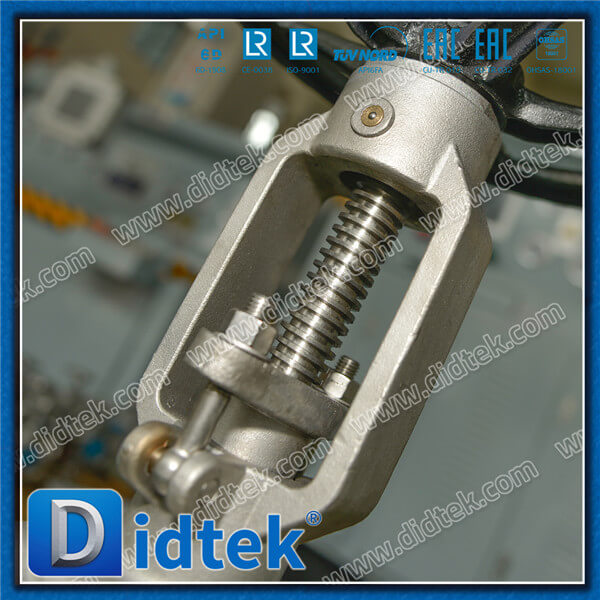

- Outside Screw and Yoke
- Bolted Bonnet and Pressure Seal
- Flexible and solid wedge, fully guided
- Welding seat rings or Renewable seat rings
- Rising stem and non-rising stem
- Available with gear operator
- Flange Ends & Buttwelding Ends
- Low torque design, smooth surface stem

Availability:

Quantity:


Inquire Add to Basket

Brand: DIDTEK
Structure: Gate
Material: Didtek provide cast steel, stainless steel, special alloy, CI, DI etc
Type: Didtek Produce Gate Valve
Test: 100% quantity tested before delivery
Guarantee: 18 months after shipments and 12 months after installed

Product Description

闸阀1

Brand	DIDTEK
Valve Structure	Wedge Gate Valve
Valve Delivery	15 - 30 days
Valve Sample	Sample Available by Didtek Valve
Valve Color	Customer request
Valve Packing	Plywood Case for Gate Valve
MOQ	1 Set
Valve Certificate	API6D/CE/ISO9001/ISO14001
Place of Origin	Zhejiang, China (Mainland)
Delivery Detail:	Shipped in 15-30 days after payment
Port	Shanghai Or Ningbo
Payment Terms	L/C,D/A,D/P,T/T, Western Union

Product Details

Applicable Standards:

Gate Valve, API600

Steel Valves, ASME B16.34
Face to face ASME B16.10
End Flanges ASME B16.5/ASME B16.47
Butt Welding ends ASME B16.25
Inspection and test API 598

Operated: Hand wheel
Material: CF8
Size Range: 2"~36"
Pressure Rating: ASME CL, 150, 300, 600, 900, 1500, 2500
Temperature Range: -196℃~650℃

DIDTEKCSGV

Design Description:

- Outside Screw and Yoke

- Bolted Bonnet and Pressure Seal

- Flexible and solid wedge, fully guide

- Welding seat rings or Renewable seat rings

- Rising stem and non-rising stem

- Available with gear operator

- Flange Ends & Buttwelding Ends

- Low torque design, smooth surface stem

未标题-1

Gate Valve -API600 -Materials:

Parts Name	Part Name	Carbon Steel to ASTM		Alloy Steel to ASTM				Stainless Steel to ASTM
1	Body	A216WCB	A352 LCB	A217 WC1	A217 WC6	A217 WC9	A217C5	A351 CF8	A351 CF8M	A351 CF3	A351 CF3M
2	Seat	A105+13Cr	A105+304	F11/F22+STL				304	316	304L	316L
3	Nuts	A194 2H	A194 4	A194 4	A194 4	A194 4	A194 4	A194 8	A194 8M	A194 8	A194 8M
4	Bolts	A193 B7	A320 L7	A193B16	A193B16	A193B16	A193B16	A193 B8	A193 B8M	A193 B8	A193 B8M
5	Disc	A216 WCB+13Cr	A352 LCB+304	A217 WC1+STL	A217 WC6+STL	A217 WC9+STL	A217 C5+STL	A351 CF8	A351 CF8M	A351 CF3	A351 CF3M

Gate Valve -API600 -Table Of Available Dimensions:

DIDTEKCSGV Table Of Available Dimensions 1

DIDTEKCSGV Table Of Available Dimensions 2

Application & Function:

Didtek Cast steel Gate valves are primarily used for stop valves fully opened or fully closed. They are not normally considered for throttling purposes, but more for slurries, viscous fluids, etc. Gate valves are characterized by a traveling wedge, which is moved with the operation of the stem nut. The wedge travels perpendicular to the direction of the flow. Gate valves usually have a minimum pressure drop when fully open, provide tight shut-off when fully closed, and remain relatively free of contamination buildup.

Accessories:

Accessories such as gear operators, actuators, bypasses, locking devices, chain wheels, extended stems and bonnets for cryogenic service and many others are available to meet the customers’requirements.
